IF1200

Unrivaled endurance. Limitless possibilities.

A large professional platform for complex sensor packages, demanding field operations, and missions that need substantially more payload capacity.

Build my configuration Talk to an expert

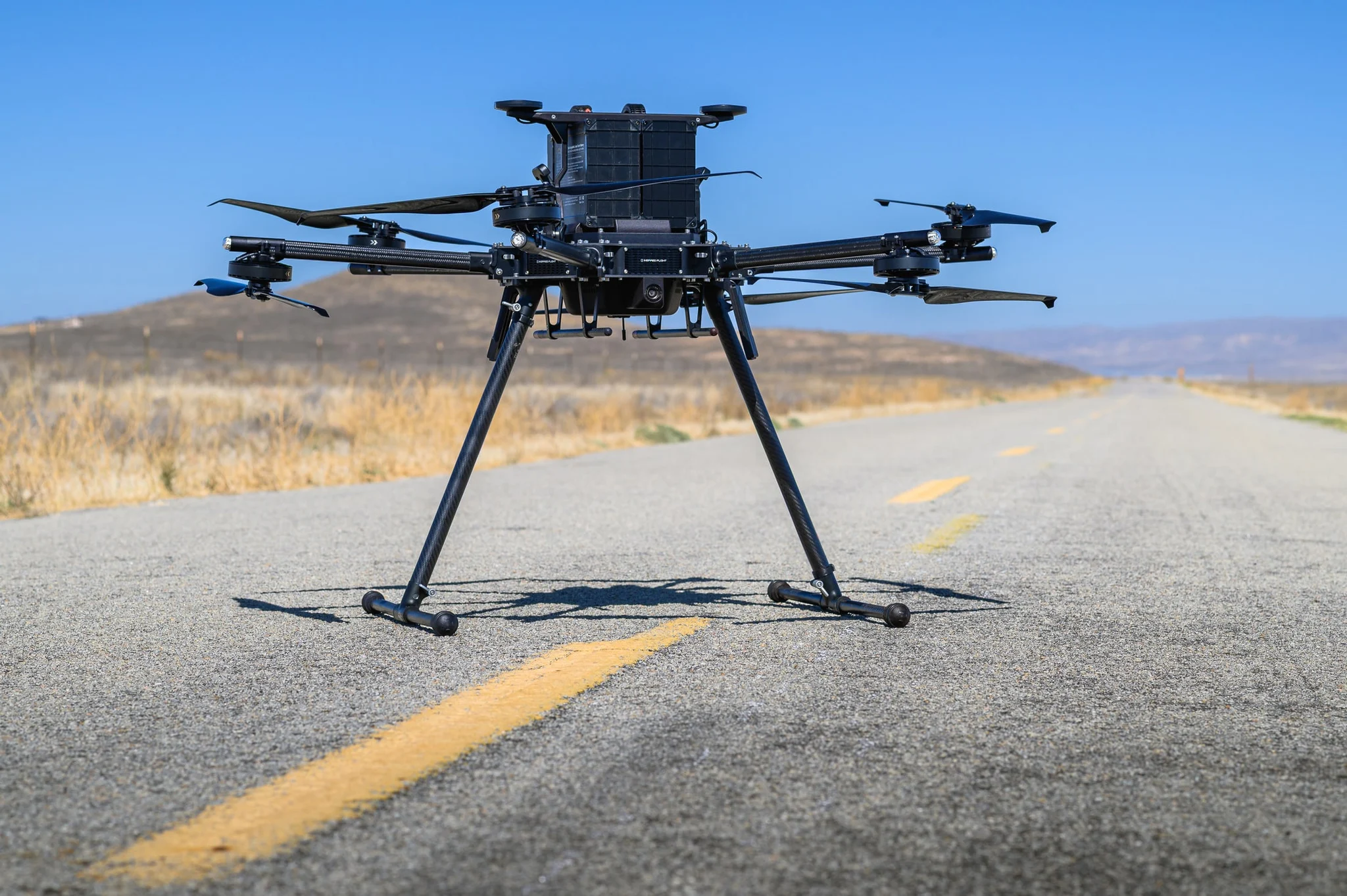

Inspired Flight IF1200 heavy-lift hexacopter positioned on a roadway

43 minmaximum flight time

19.1 lbmaximum payload

56 mphmaximum speed

NDAAcompliant platform

Aircraft matched to the mission

Lift more capability without closing the payload ecosystem.

The IF1200 combines substantial lift with an open payload architecture. Its universal dovetail interface and multiple power rails provide a flexible base for advanced LiDAR, imaging, EO/IR, multispectral, and specialized sensor packages.

Heavy-lift performance

Carry up to 19.1 lb for complex payload stacks and sensors that exceed compact-aircraft limits.

Open payload architecture

A universal dovetail interface and 5V, 12/15V, and 18V power options simplify mission-specific integration.

Built for field operations

Integrated FPV and a transportable folded configuration support practical single-operator deployment.

U.S. platform support

Engineered, assembled, and supported in the United States, with Blue UAS and Green UAS certification.

Built for field work

See the platform in detail.

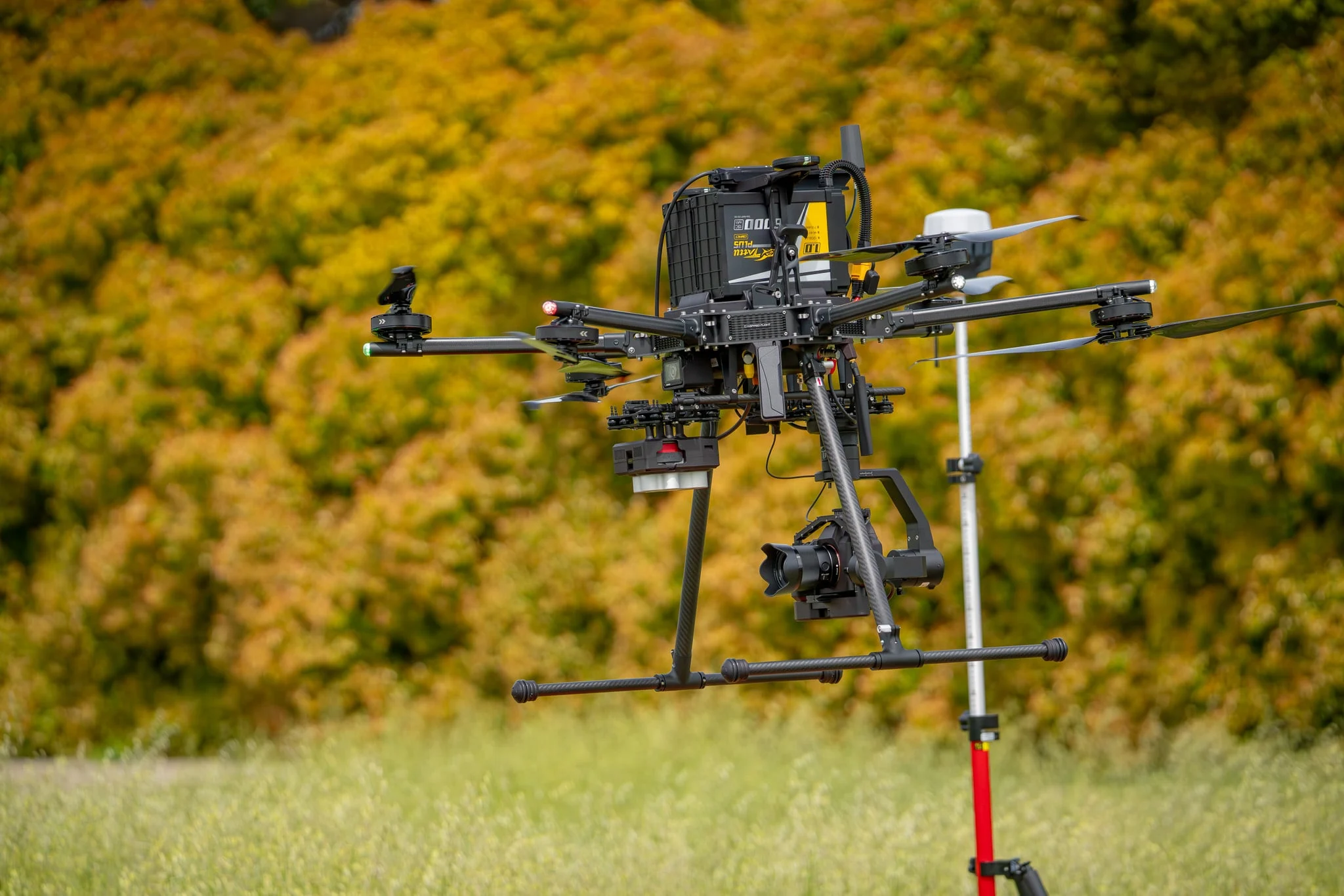

IF1200 flying with a professional sensor package — Heavy-lift performance supports larger, mission-specific sensor packages.

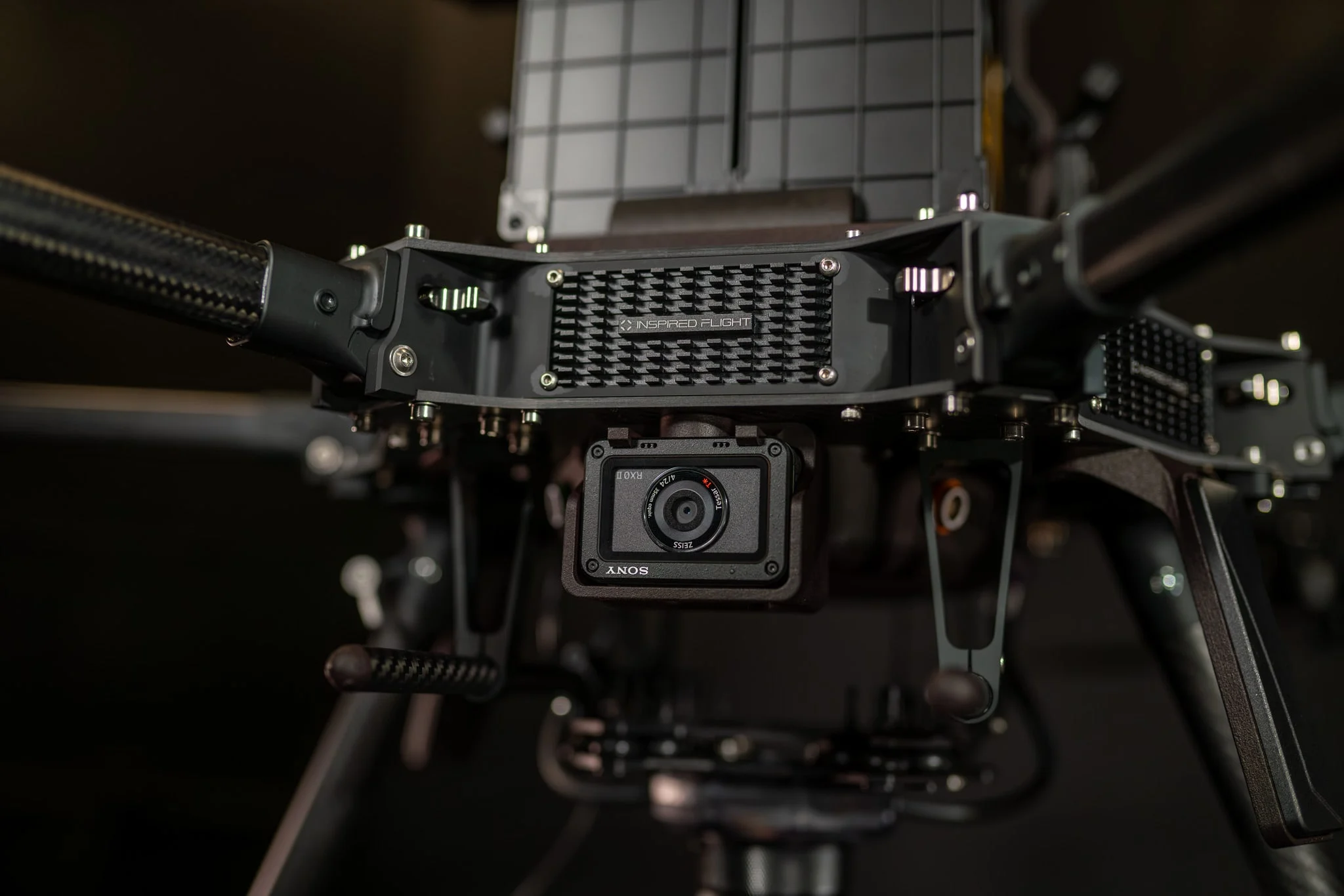

Close view of the IF1200 integrated FPV system — The integrated FPV camera helps maintain visual awareness during operation.

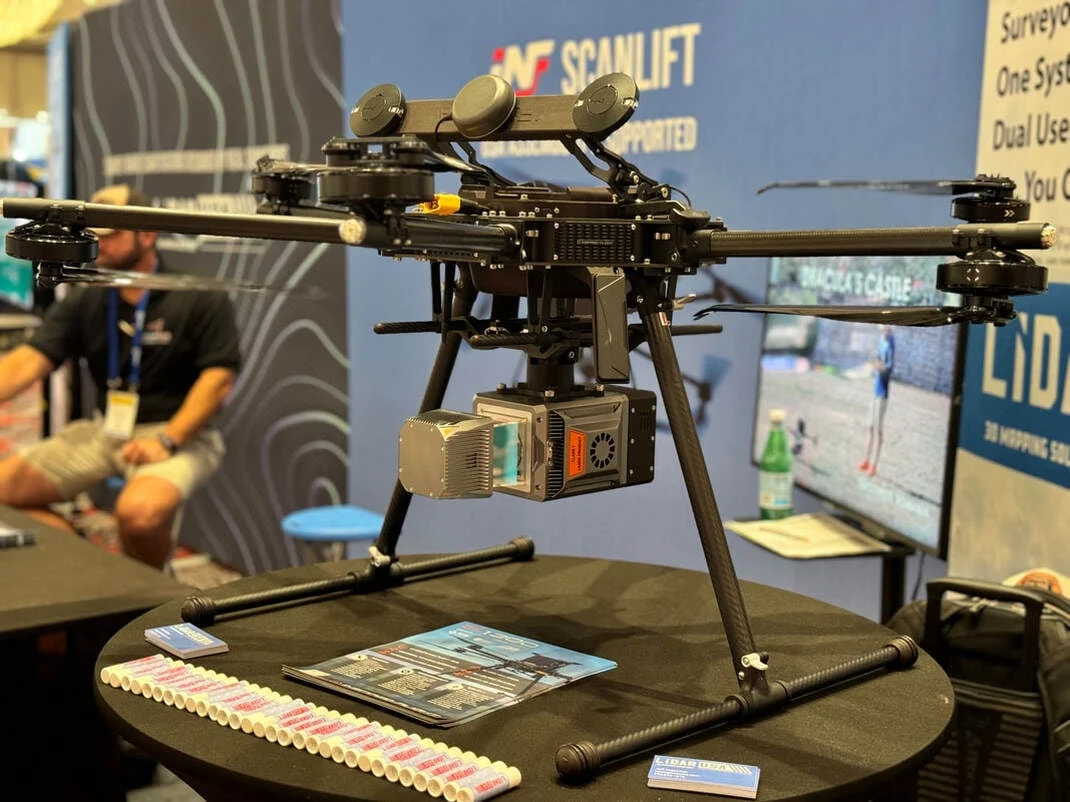

IF1200 displayed with the Surveyor NAV multi-use LiDAR System — IF1200 paired with the Surveyor NAV multi-use LiDAR System.

Aircraft details

Platform specifications

Final endurance and performance vary with payload, configuration, conditions, and operating procedures.

Performance

Maximum flight time: 43 minutes
Maximum ascent speed: 5 m/s / 16 ft/s
Maximum descent speed: 3 m/s / 10 ft/s
Maximum air speed: 25 m/s / 56 mph
Wind resistance: 12 m/s; gusts to 15 m/s
Operating temperature: -20°C to 45°C / -4°F to 113°F
Service ceiling: 12,800 ft with 8.8 lb; 7,200 ft with 19.18 lb

Physical

Diagonal size: 1,025 mm / 40.4 in
Unfolded size: 165.5 × 154 × 76.5 cm / 65.1 × 60.6 × 30.2 in
Folded size: 47.5 × 49.5 × 47 cm / 18.7 × 19.5 × 18.5 in
Empty weight: 7.8 kg / 17.2 lb
Weight with batteries: 16.3 kg / 35.9 lb
Maximum takeoff weight: 24.9 kg / 54.9 lb
Maximum payload: 8.6 kg / 19 lb
Transport case: 64.8 × 64.8 × 58.4 cm; 29 kg loaded

Flight stack

Flight controller: CubePilot Cube Blue H7
GNSS / compass: Dual CubePilot Here3 M8P
Payload power rails: 5 V, 12/15 V, and 18 V
Payload interface: IF1200A Universal Payload Interface 2.1 or 3.0

Aircraft specifications from Inspired Flight
