BUILT IN THE USA. PROVEN EVERYWHERE.
All systems64-channel LiDAR platform

Liberty 64

High-density capability without unnecessary complexity.

A compact UAV LiDAR mapping package engineered for productive aerial collection, with an in-field path to ground-based vehicle or backpack deployment and a complete local processing workflow.

Configure this system Talk to an expert
Liberty 64 LiDAR system
300+points per square meter
100 millustrated AGL
60+acres in one flight
<2.5 cmat 40 m AGL
LiDARUSA system planner

Plan the collection. See the density.

Use the revised interactive planner to compare settings and inspect the flight preview, density map, line chart, and—where this system supports it—the mobile road-sampling diagram.

01 / Aerial mapping

Find your flight settings.

Liberty 64 · UAV
02 / Mobile mapping

Plan your mobile scan.

Liberty 64 · MMS

Density and diagrams are theoretical planning estimates from the supplied file. Real coverage depends on the complete configuration, target reflectivity, terrain, scan geometry, vehicle or aircraft operation, and processing.

Configured for collection

The Liberty 64 in the field.

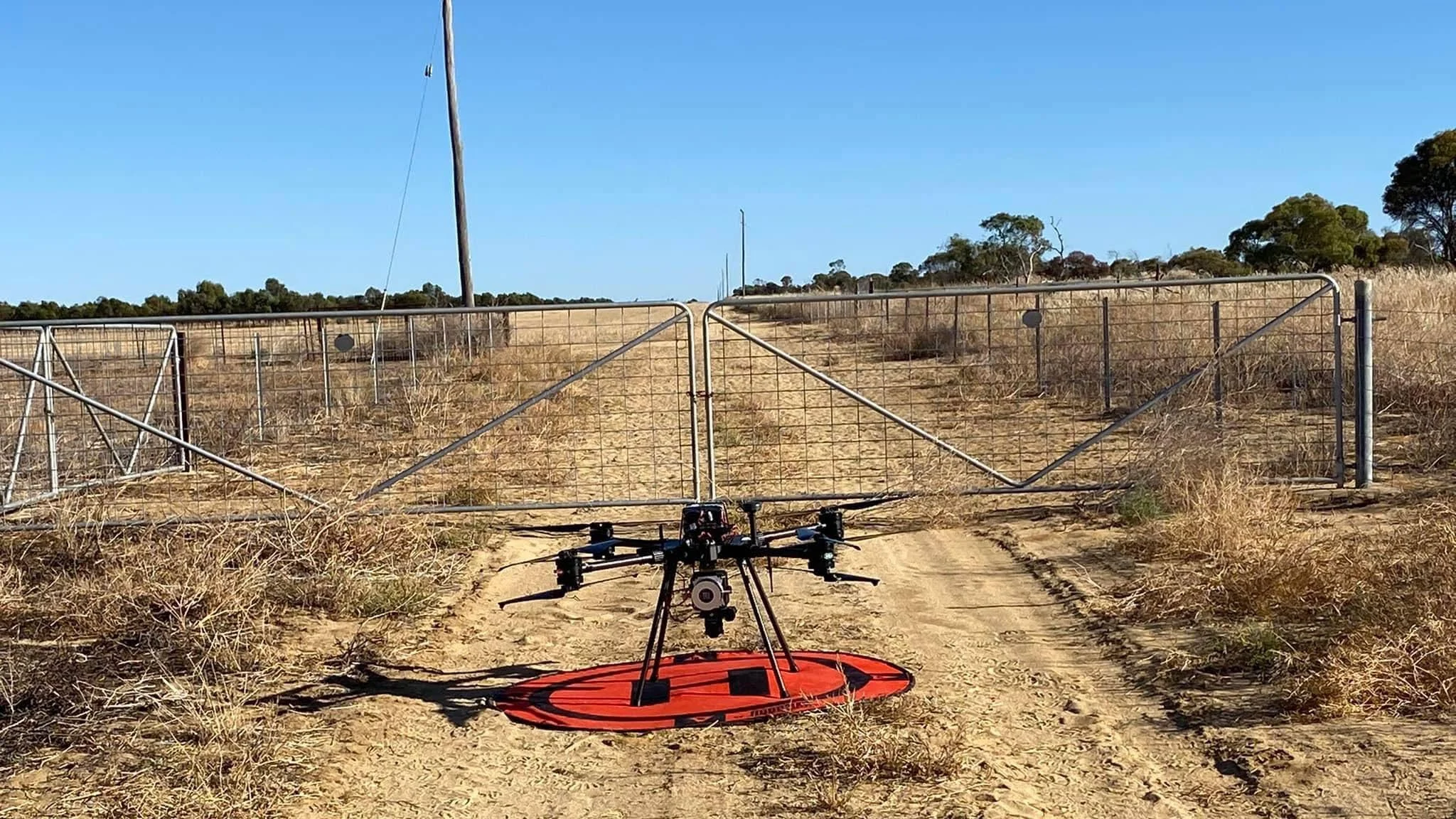

Liberty 64 UAV mapping system prepared on a field landing pad
A UAV-first mapping package that can transition to ground-based vehicle or backpack collection.

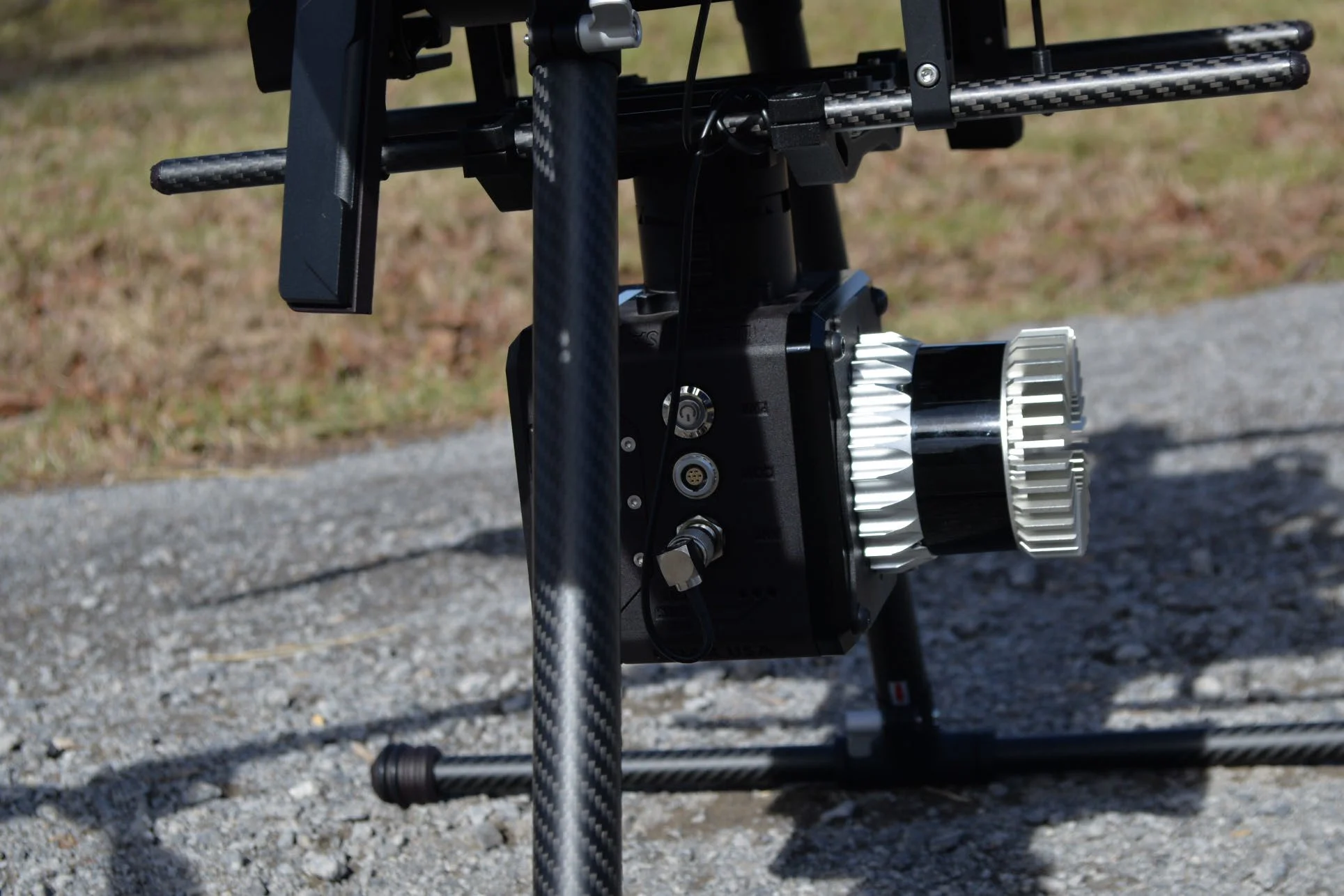

Close view of the Liberty 64 LiDAR sensor mounted beneath the aircraft
Compact integrated hardware keeps the LiDAR sensor secure and accessible beneath the aircraft.

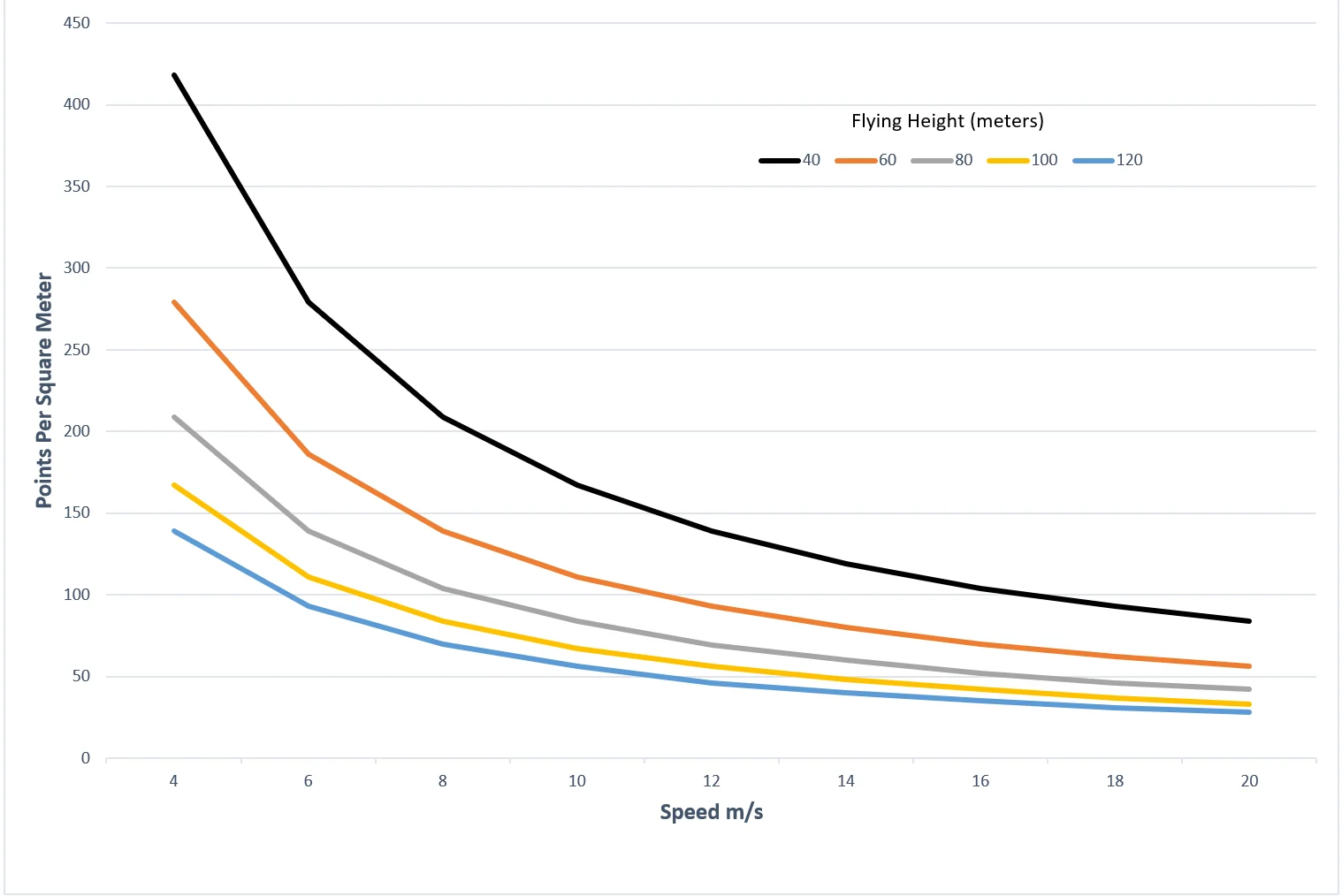

Liberty 64 point-density chart by flight speed and altitude
The point-density chart helps crews plan point spacing against flight speed and height.
Configured around the work

The Complete System.

Final specifications and performance depend on the selected sensor, INS, camera, aircraft or vehicle, operating conditions, and project requirements.

UAV-first, MMS enabled

The core system is designed for UAV missions and can be upgraded in the field for vehicle or backpack collection.

Compact system envelope

The referenced configuration measures 3.5 × 8.75 × 4.375 inches and weighs approximately 1.73 kg.

Efficient field power

A 10–30 VDC input range and 25-watt power draw support practical integration with professional aircraft and mobile platforms.

Scalable storage

External storage scales up to 1 TB, supported by internal storage for the integrated acquisition workflow.

Mission-planning density data

Point-density curves cover 40–120 m flight heights and speeds from 4–20 m/s.

Complete processing workflow

ScanLook tools include strip matching, control-point adjustment, point-cloud filtering, automatic turn removal, custom coordinate systems, and LAS/LAZ export.

Technical profile

Liberty 64 specifications

Core performance details for planning aircraft integration, collection altitude, and point-cloud density.

System height3.5 in
System length8.75 in
System width4.375 in
System weight~1.73 kg
Input power10–30 VDC
Power consumption25 W
External storageUp to 1 TBStorage range begins at 500 MB
Internal storage500 MBSpecified internal storage
Illustrated point density300+ pts/m²
Illustrated AGL100 m
Illustrated mission coverage60+ acresOne flight
Illustrated accuracy<2.5 cmAt 40 m AGL
A strong starting point for

Mission applications

01Topographic mapping
02Engineering surveys
03Corridor mapping
04Vehicle and backpack MMS
