Liberty NDAA

The next Liberty is taking shape.
Get a first look at what’s coming.

NDAAlocal software license

100 millustrated AGL

60+acres in one flight

<2.5 cmat 40 m AGL

Configured around the work

A complete system—not a box of parts.

Final specifications and performance depend on the selected sensor, INS, camera, aircraft or vehicle, operating conditions, and project requirements.

NDAA-focused workflow

Includes a local-computer software license identified as NDAA compliant for programs with controlled processing requirements.

UAV-first, MMS enabled

Begin with aerial collection and upgrade the system in the field for vehicle or backpack deployment.

Compact system envelope

The referenced configuration measures 3.5 × 8.75 × 4.375 inches and weighs approximately 1.73 kg.

Efficient field power

A 10–30 VDC input range and 25-watt power draw support practical aircraft and mobile integration.

Scalable storage

External storage scales up to 1 TB, supported by internal storage for the acquisition workflow.

Local production tools

Strip matching, control adjustment, filtering, turn removal, custom coordinate systems, and LAS/LAZ export support an end-to-end local workflow.

Configured for collection

The Liberty NDAA in the field.

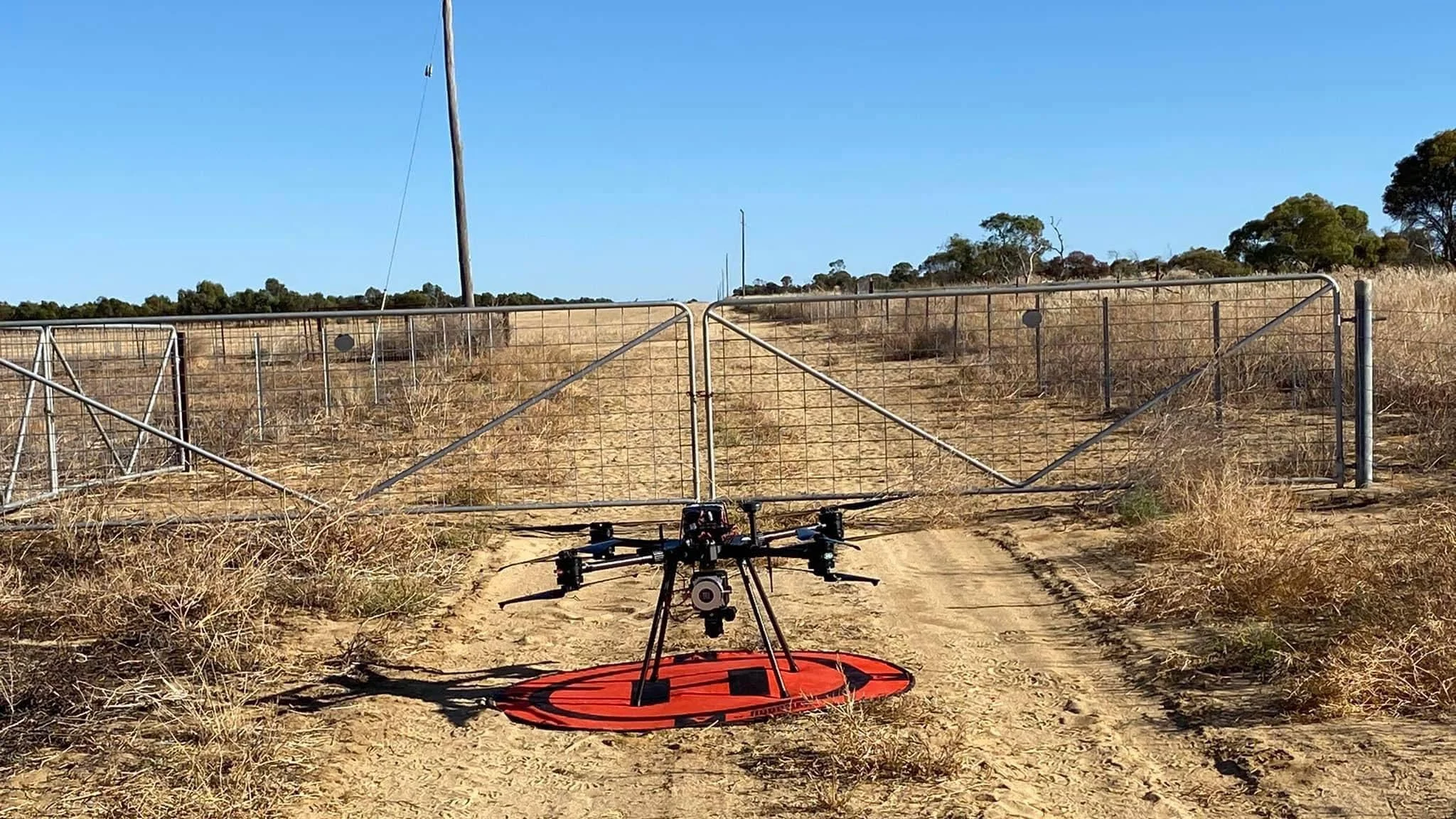

Liberty 64 UAV mapping system prepared on a field landing pad — A UAV-first mapping package that can transition to ground-based vehicle or backpack collection.

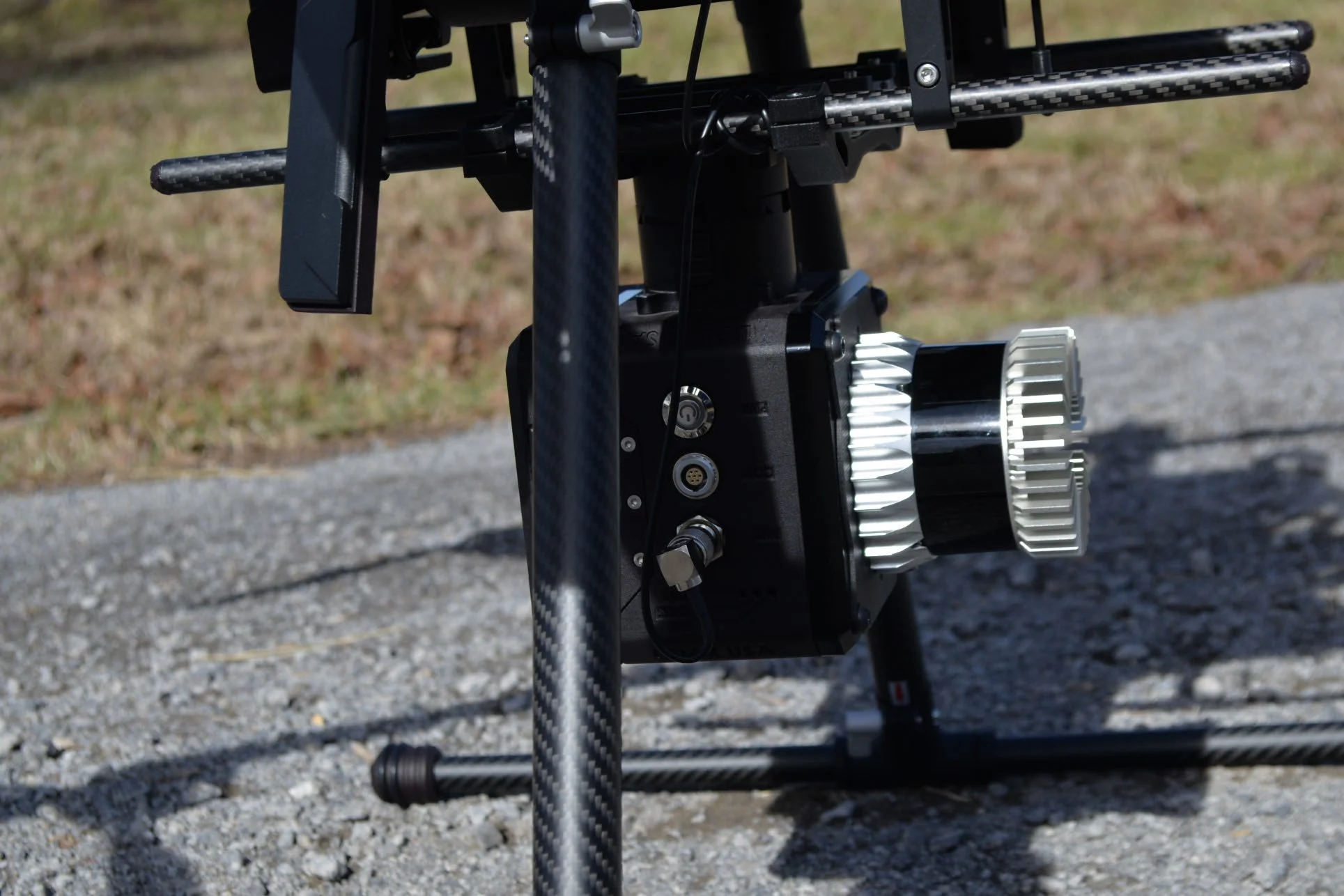

Close view of the Liberty 64 LiDAR sensor mounted beneath the aircraft — Compact integrated hardware keeps the LiDAR sensor secure and accessible beneath the aircraft.

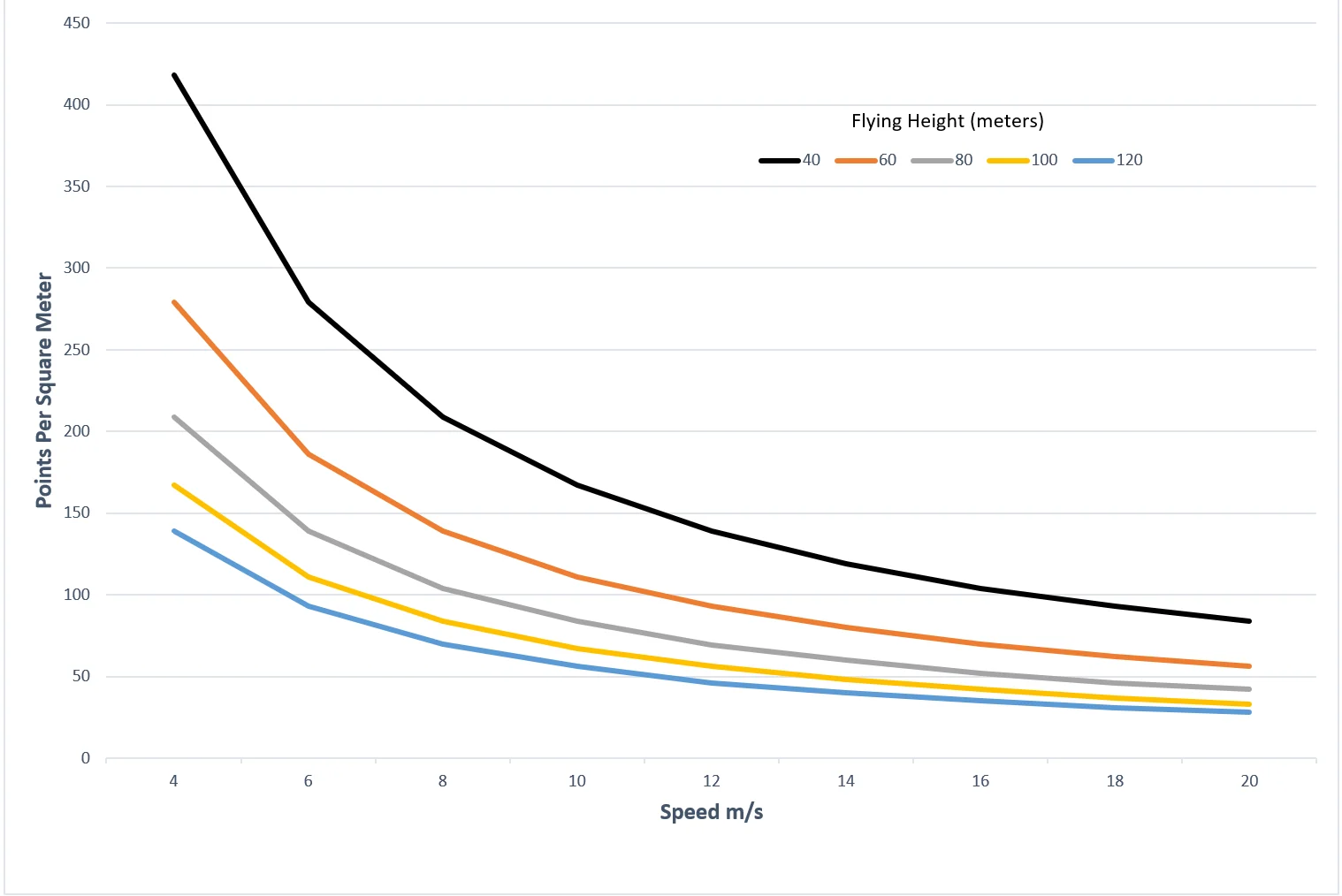

Liberty 64 point-density chart by flight speed and altitude — The point-density chart helps crews plan point spacing against flight speed and height.

Interactive mission planning

Estimate point density before takeoff.

Move across the chart to compare estimated points per square meter at representative flight speeds and flying heights. These shared planning curves are preliminary; replace them with model-specific figures when available, and confirm final results against the aircraft, sensor, and operating configuration.

Hover across the chartSee estimated density at each speed and flying height.

Technical profile

Liberty NDAA specifications

Core performance details for planning aircraft integration, collection altitude, and point-cloud density.

System height3.5 in

System length8.75 in

System width4.375 in

System weight~1.73 kg

Input power10–30 VDC

Power consumption25 W

External storageUp to 1 TBStorage range begins at 500 MB

Internal storage500 MBSpecified internal storage

Illustrated point density300+ pts/m²

Illustrated AGL100 m

Illustrated mission coverage60+ acresOne flight

Illustrated accuracy<2.5 cmAt 40 m AGL

A strong starting point for

Mission applications

01Government programs

02Critical infrastructure

03Public safety mapping

04Compliance-sensitive procurement

LiDARUSA mission integration

Let’s match the system to the data you need.

Get my recommendation & pricing
